AQUARIUS G-J (DC MODULE)
Dry-Coater Rotary Tablet Press
AQUARIUS G-J is the latest press from KIKUSUI designed for pharmaceutical production. Features include, simple operation and maintenance, easy access, quick turret exchange. All in a very rugged, reliable and compact design that KIKUSUI has always been known for.
Product Features

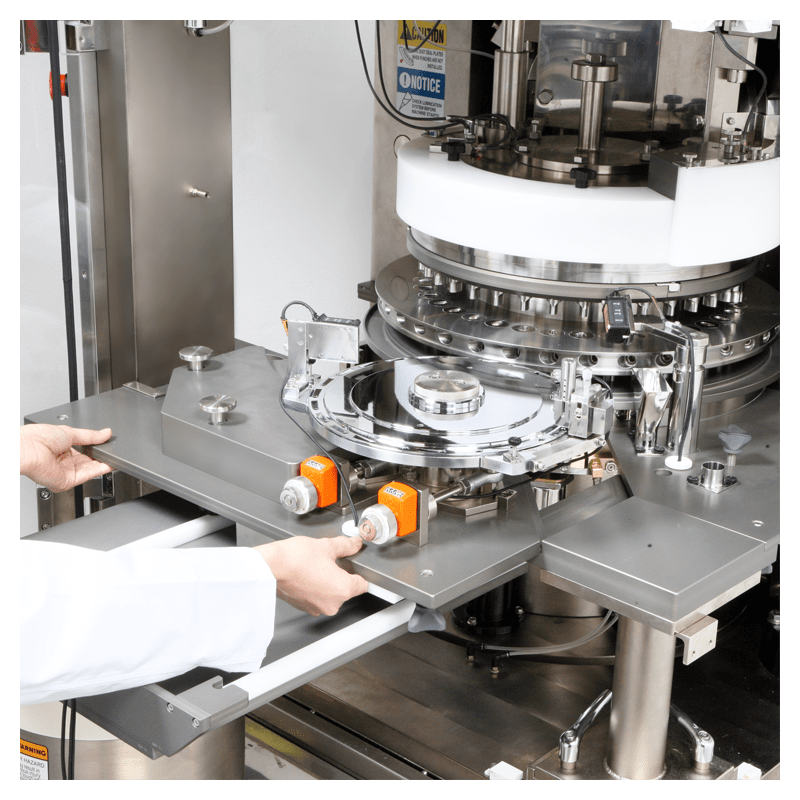

New Key Feature, AQUARIUS G-J has multi process mode capability, REGULAR & DC mode. It can produce not only regular tablets but also Tablet in tablet products on same machine. A simple module change or turret removal quickly changes it’s capabilities. Step by Step guidance on the OIT ensures proper set up.
It has B type keyed upper punch sockets, 10 ton pre & main compression rollers, and 7.5kW electric motor. The speed of the turret is 10~40 rpm yielding a throughout capacity for a 36 (45) station press of 21,600 to 86,400 (27,000 to 108,000) tablets per hour. The machine dimensions are approx.W1,070mm×D1,010mm×H1,850mm.

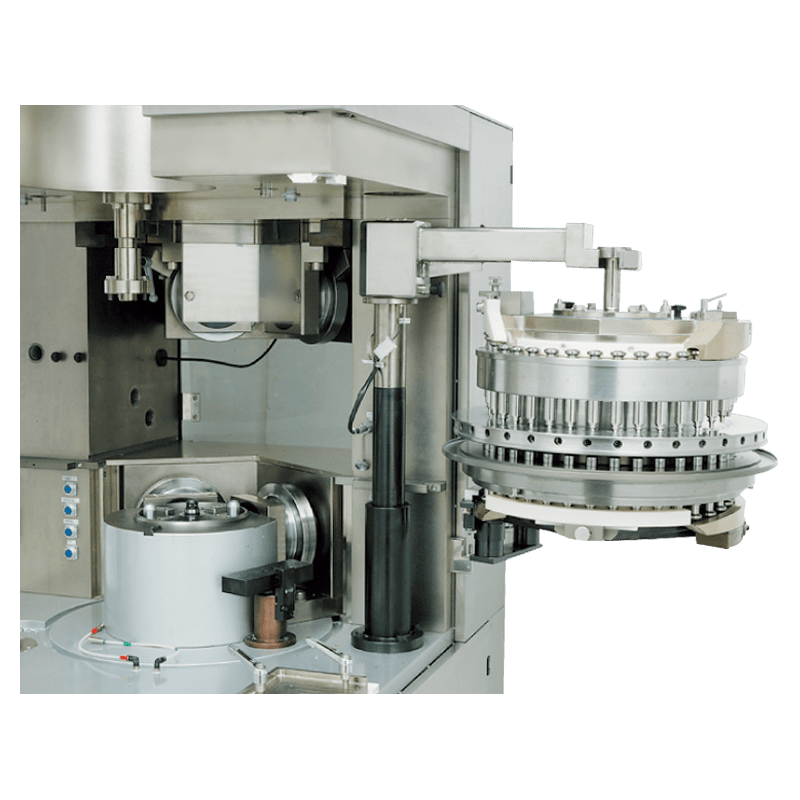

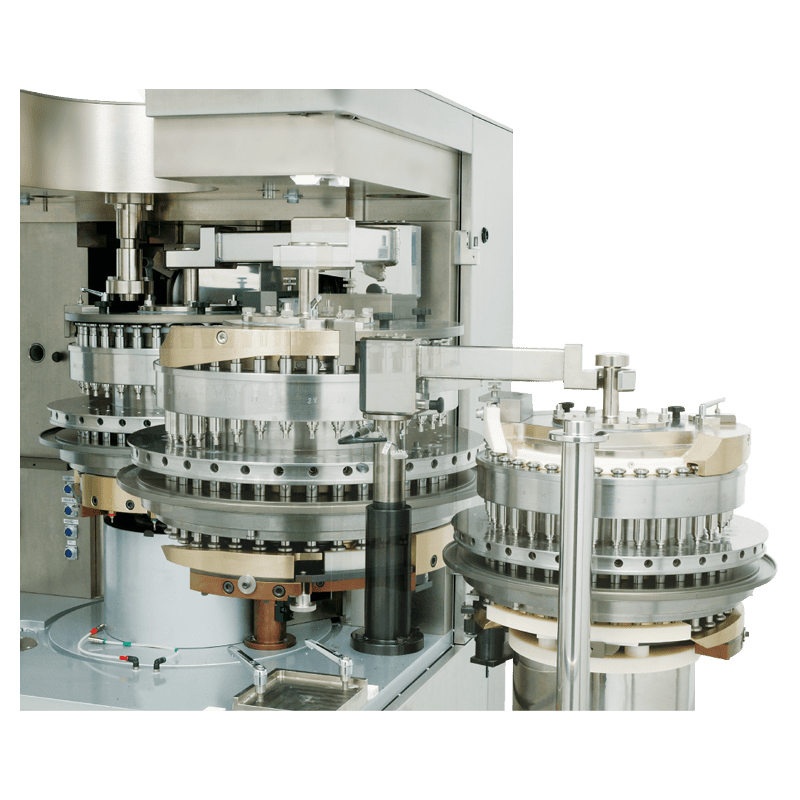

The external finish is stainless steel 316L. Also it provides turret changeability as standard; this feature allows the machine to switch Normal tableting module to increase the presses flexibility.
-
Model & Type AQUARIUS G-J / Dry Coating Mode No. of Stations 45 36 Type of tooling BB B Max pressure (kN) Pre 100 / Main 100 Max tablet dia (mm) 12 16 Turret speed (rpm) 10-40 Tablets/hr. 27,000-108,000 21,600-86,400 Filling depth 1 / 2 (mm) 1-6 / 4-15 Tablet thickness (mm) 0-8 Body dimension (W*D*Hmm) 1,010x1,010x1,836 Body weight (kg) 2,800 DC cabinet dimension (W*D*Hmm) 640x550x1,825 DC cabinet weight (kg) 310 Model & Type AQUARIUS G-J / Dry Coating Mode No. of Stations 45 36 Type of tooling BB B Max pressure (kN) Pre 100 / Main 100 Max tablet dia (mm) 12 16 Turret speed (rpm) 10-40 Tablets/hr. 27,000-108,000 21,600-86,400 Filling depth 1 / 2 (mm) 1-6 / 4-15 Tablet thickness (mm) 0-8 Body dimension (W*D*Hmm) 1,010x1,010x1,836 Body weight (kg) 2,800 DC cabinet dimension (W*D*Hmm) 640x550x1,825 DC cabinet weight (kg) 310
